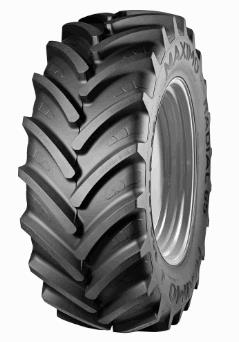

Radial 65

The new Maximo Radial 65 sizes guarantee good performance both in the field and on the road. The shape and angle of the lugs assure traction capacity and low slippage. The special inter-lug “island” on the tread increases the self-cleaning capability of the tire. On the road, the new Radial 65 assures good handling and comfort. In addition, the massive lug’s head, assure long life.

Select size:

  • Section width 435
    Overall Diameter --
    Rolling circumference --
    Static loaded radius --
    Speed radius index --
    Nominal rim DW14L
    Permitted rim(s) W13; W14L; W15L; DW13; DW15L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 14.9-24 TR218
  • Section width 435
    Overall Diameter --
    Rolling circumference --
    Static loaded radius --
    Speed radius index --
    Nominal rim W14L
    Permitted rim(s) W13L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 16.9-28 TR218
  • Section width 480
    Overall Diameter 1235
    Rolling circumference 3695
    Static loaded radius 560
    Speed radius index --
    Nominal rim DW15L
    Permitted rim(s) W14L; W15L; W16L; DW14L; DW15L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 16.9-24 TR218
  • Section width 480
    Overall Diameter 1345
    Rolling circumference 4010
    Static loaded radius 605
    Speed radius index 650
    Nominal rim DW15L
    Permitted rim(s) W14L; W15L; W16L; DW14L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 16.9-28 TR218
  • Section width 530
    Overall Diameter 1315
    Rolling circumference 3915
    Static loaded radius 600
    Speed radius index 625
    Nominal rim DW16L
    Permitted rim(s) W15L; W16L; W18L; DW15L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 16.9-28 TR218
  • Section width 525
    Overall Diameter 1413
    Rolling circumference 4250
    Static loaded radius 637
    Speed radius index 675
    Nominal rim DW16L
    Permitted rim(s) W15L; W16L; W18L; DW15L; DW18L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 16.9-28 TR218
  • Section width 530
    Overall Diameter 1470
    Rolling circumference 4380
    Static loaded radius 670
    Speed radius index 700
    Nominal rim DW16L
    Permitted rim(s) W15L; W16L; W18L; DW15L; DW18L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube --
  • Section width 520
    Overall Diameter 1580
    Rolling circumference --
    Static loaded radius --
    Speed radius index --
    Nominal rim DW16L
    Permitted rim(s) W15L; W16L; W18L; DW15L; DW18L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 16.9-34 TR218
  • Section width 530
    Overall Diameter 1680
    Rolling circumference --
    Static loaded radius --
    Speed radius index --
    Nominal rim DW16L
    Permitted rim(s) W15L; W16L; W18L; DW15L; DW18L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 18.4-38 TR218
  • Section width 600
    Overall Diameter 1650
    Rolling circumference 4935
    Static loaded radius 750
    Speed radius index --
    Nominal rim DW20B
    Permitted rim(s) DW18L; W18L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube --
  • Section width 590
    Overall Diameter 1770
    Rolling circumference 5285
    Static loaded radius 800
    Speed radius index 825
    Nominal rim DW18L
    Permitted rim(s) W18L; DW20B
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 20.8-38 TR218
  • Section width 650
    Overall Diameter 1815
    Rolling circumference 5410
    Static loaded radius 815
    Speed radius index 875
    Nominal rim DW20B
    Permitted rim(s) W18L; DW18L
    Nominal pressure (bar) 1.6
    Tread type R-1W
    Tubetype Tubeless
    Tube 20.8-38 TR218
  • Section width 650
    Overall Diameter 1820
    Rolling circumference 5480
    Static loaded radius 825
    Speed radius index 875
    Nominal rim DW20B
    Permitted rim(s) --
    Nominal pressure (bar) 2.8
    Tread type R-1W
    Tubetype Tubeless
    Tube --

Load/Pressure/Speed

Speed 0.6 bar 0.8 bar 1 bar 1.2 bar 1.4 bar 1.6 bar 1.8 bar 1.9 bar 2.1 bar
  9 psi 12 psi 15 psi 17 psi 20 psi 23 psi 26 psi 28 psi 30 psi
65 S 1540 1780 2015 2230 2240 2650
50 S 1615 1865 2115 2340 2560 2785
40 S 1685 1945 2210 2440 2670 2905
30 S 1770 2045 2320 2560 2805 3050
10 LT S 2095 2415 2740 3030 3320 3605 2855 3975 4505
10 HT S 1770 2045 2320 2560 2805 3050
