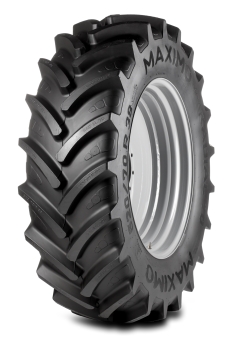

Radial 70

MAXIMO Radial 70 guarantees high comfort levels for the driver due to the flexible sidewall. The longer service life of Radial 70, the great traction, as well as the good handling on the road makes the new range the right choice for reduced working time and high cost efficiency. The special inter-lug “islands” improve the self-cleaning of the tyre, minimizing the distance required to release mud from the tread, thereby helping with adherence to road regulations.

Select size:

  • Section width 352
    Overall Diameter 1152
    Rolling circumference 3455
    Static loaded radius 518
    Speed radius index 550
    Nominal rim W11
    Permitted rim(s) W10; W12; DW10; DW11; DW12
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 13.6-24 TR218
  • Section width 384
    Overall Diameter 1194
    Rolling circumference 3580
    Static loaded radius 535
    Speed radius index 575
    Nominal rim W12
    Permitted rim(s) W11; W13; DW11; DW12; DW13
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 14.9-24 TR218
  • Section width 375
    Overall Diameter 1295
    Rolling circumference 3890
    Static loaded radius 585
    Speed radius index 625
    Nominal rim W12
    Permitted rim(s) W11; W13; DW11; DW12; DW13
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 12.4-28 TR218
  • Section width 422
    Overall Diameter 1256
    Rolling circumference 3765
    Static loaded radius 562
    Speed radius index 600
    Nominal rim W13
    Permitted rim(s) W12; W14L; DW12; DW13; DW14L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 16.9-24 TR218
  • Section width 423
    Overall Diameter 1354
    Rolling circumference 4060
    Static loaded radius 605
    Speed radius index 650
    Nominal rim W13
    Permitted rim(s) W12; W14L; DW12; DW13; DW14L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 16.9-28 TR218
  • Section width 468
    Overall Diameter 1318
    Rolling circumference 3950
    Static loaded radius 590
    Speed radius index 625
    Nominal rim W15L
    Permitted rim(s) W14L; W16L; DW14L; DW15L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 16.9-24 TR218
  • Section width 478
    Overall Diameter 1423
    Rolling circumference 4270
    Static loaded radius 636
    Speed radius index 675
    Nominal rim W15L
    Permitted rim(s) W14L; W16L; DW14L; DW15L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 16.9-28 TR218
  • Section width 472
    Overall Diameter 1478
    Rolling circumference 4435
    Static loaded radius 662
    Speed radius index 700
    Nominal rim W15L
    Permitted rim(s) W14L; W16L; DW14L; DW15L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 18.4-30 TR218
  • Section width 480
    Overall Diameter 1580
    Rolling circumference 4740
    Static loaded radius 705
    Speed radius index 750
    Nominal rim W15L
    Permitted rim(s) W14L; W16L; DW14L; DW15L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 16.9-34 TR218
  • Section width 474
    Overall Diameter 1680
    Rolling circumference 5045
    Static loaded radius 750
    Speed radius index 800
    Nominal rim W15L
    Permitted rim(s) W14L; W16L; DW14L; DW15L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 18.4-38 TR218
  • Section width 516
    Overall Diameter 1640
    Rolling circumference 4920
    Static loaded radius 730
    Speed radius index 775
    Nominal rim W16L
    Permitted rim(s) W15L; W18L; DW15L; DW16L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 16.9-34 TR218
  • Section width 530
    Overall Diameter 1755
    Rolling circumference 5280
    Static loaded radius 781
    Speed radius index 825
    Nominal rim W16
    Permitted rim(s) W15L; W18L; DW15L; DW16L; DW18L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 18.4-38 TR218
  • Section width 584
    Overall Diameter 1840
    Rolling circumference 5525
    Static loaded radius 820
    Speed radius index 875
    Nominal rim W18L
    Permitted rim(s) DW18L
    Nominal pressure (bar) 1.6
    Tread type R1W
    Tubetype Tubeless
    Tube 20.8-38 TR218
  • Section width 620
    Overall Diameter 1940
    Rolling circumference 5820
    Static loaded radius 865
    Speed radius index 925
    Nominal rim DW20B
    Permitted rim(s) DW18L; W18L
    Nominal pressure (bar) 2.4
    Tread type R1W
    Tubetype Tubeless
    Tube --

Load/Pressure/Speed

Speed 0.4 bar 0.6 bar 0.8 bar 1 bar 1.2 bar 1.4 bar 1.6 bar 1.8 bar 1.9 bar 2.1 bar
  6 psi 9 psi 12 psi 15 psi 17 psi 20 psi 23 psi 26 psi 28 psi 30 psi
50 S   825 960 1095 1230 1365 1500
40 S   825 960 1095 1230 1365 1500
30 S   885 1025 1170 1315 1460 1605
10 LT S 920 1120 1305 1490 1675 1855 2040 2185 2245 2550
10 HT S   885 1025 1170 1315 1460 1605

Notes
